Brand Name : | Joeben |
Model Number : | PCDFCT73 |
Certification : | ISO9001:2015 , GR201744202646 |
Price : | negotiable |
Payment Terms : | L/C, T/T, , D/A |
Supply Ability : | 100000 Piece/Pieces per Month |
Delivery Time : | 3-8work days |

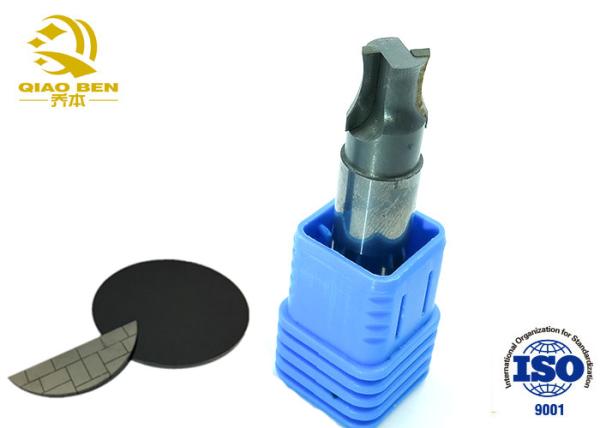

High quality CNC Diamond cutter for AluminumManufacturers Wholesale
High-Quality Pcd Cutter
Main indicators
1) The hardness of PCD can reach 8000HV, which is 8~12 times of
hard alloy;
2)The thermal conductivity of PCD is 700W/mK, 1.5~9 times of hard
alloy, even higher than PCBN and copper, so PCD tool heat transfer
quickly;
3)The friction coefficient of PCD is generally only 0.1~0.3(the
friction coefficient of cemented carbide is 0.4~1), so PCD tool can
significantly reduce the cutting force;
4)PCD's thermal expansion coefficient is only 0.9×10^-6~1.18×10^-6,
only equivalent to 1/5 of the hard alloy, so the PCD tool thermal
deformation is small, high processing precision;
5)THE affinity between PCD tool and non-ferrous metal and
non-metallic materials is very small, in the process of cutting
chip is not easy to bond to the tip of the knife to form a chip
tumor.
PCD forming milling cutter of the special features: for mobile
phone shell, panel, mobile phone lens, digital lenses, camera
lenses, MP3 / MP4 lens, VCD, DCD, digital Windows, electrical name
plate and other CNC chamfering, milling processing, high precision
cutting tool size (+ / - 0.01 mm), processing product is no burr
and long tool life, high machining efficiency, low cost and high
surface finish, etc. Is the best choice of CNC precision machining!
PCD milling cutter application: gold, silver, copper, aluminum,
acrylic, PC, PET...Nonmetallic material carving and milling
processing.Hardware car parts;Auto parts;Surface treatment;
Technological products;Carved;Copper batching;Mobile phone metal
buttons;Mobile phone case;Digital enclosure;Non-metallic high-gloss
batch;Watch surface, word nail;Internal reflection knife in the
case;Nameplate, nameplate highlight flower;Car CD lines;Car
colorful grain;Car spattern;Aluminum product highlights;Electrical
shell batching;Electrical panel;Vehicle panel;Computer
peripherals;Transparent computer case;Acrylic polishing;Acrylic
(plexiglass) highlight (polishing) chamfering;The
lens;Windows;Motor commutator fine car, etc.
1) The appropriate size of the jacket must be used, because of
serious wear or not round enough and the taper of the inner hole of
the jacket, can not provide enough clamping force, resulting in
vibration or twist of the handle and fly off.
2) When the tool holder is found to have uneven contact marks or
grooves after clamping, it indicates that there is slippage or
deformation of the inner hole of the fixture.The jacket should be
replaced immediately.The tool handle and the jacket must be
sufficiently tight and firm to cause the tool handle to break or
have an accident.
3) Keep the tool clean after work, and use standard industrial
solvents to remove the dirt stuck on the tool.
4) Do not change the tool type or the tool type without
authorization, because each grinding process requires professional
grinding equipment and professional grinding skills.Otherwise, it
is easy to cause the knife edge to break and produce an accident
PCD Recommended Cutting Condition | |||
Work piece | Cutting Speed | Depth of Cut | Feed Rate |
(m/min) | (mm) | (mm/rev) | |
Aluminum(5~8% SI ) | 350~1600 | 0.05~2.50 | 0.10~0.40 |
Aluminum(8~12% SI ) | 350~1300 | 0.05~2.50 | 0.10~0.40 |
Aluminum(14~18% SI ) | 160~800 | 0.05~2.50 | 0.05~0.25 |
Copper | 350~1000 | 0.15~2.50 | 0.05~0.20 |
Sintered Carbid | 15~25 | 0.05~0.60 | 0.10~0.20 |
Glass Fiber | 100~800 | 0.15~0.50 | 0.03~0.25 |
Carbon | 160~700 | 0.15~2.50 | 0.15~0.40 |
High Aluminum | 70~250 | 0.05~1.50 | 0.03~0.15 |
Ceramics | |||
Wood | 1000-2500 | 0.2~5.0 | 010~0.50 |
Welcome and congratulations!You found us a professional factory! | |
Size & Design | 1.We not only supply all kinds of high quality solid carbide turning tool ,but also different types of Drill Bits,Reamers,Tool Holders,Cutter Heads,Saw Blades and Milling cutter,There are diamond grinding wheel, diamond dressing tools and hardness head. |
2. We have 0.02mm-25mm different diameter and 38mm-150mm length Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes for you to choose. | |
3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can produceaccording to your drawing,too.Or the hot deisgned recommend to you. | |
4. HS Code reference for you to control everything:8207709000. | |
5. Mixed size and types in one batch available. | |
6. For distributor,we can label your brands on cutters and plastic box. | |
Plating | 1. We accept Mix coated in the same model number, Also one batch with different coating and types. |
2. AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your competitors! | |
MOQ (Small Qty ) | 5-10-500-1000-5000-10000 pcs all are welcome. 5 pieces per order is MOQ. |
OEM One-Step Packing | We package all our goods carefully.We also accept your packing design OEM packing it for your control. |
Samples Service | 1. Some items free samples for you. |
2. Free samples but pay shipping cost. | |
3. Lowest shiping fee for you to choose. | |
4. Order to us,sample fee will be refund to you. | |
5. Become our VIP clients,free samples for you! | |
6.OEM samples are hot welcome. |
Q: Are you Manufacture?
A: Yes, we are manufacture. we produce our “JOEBEN“brand tools for gurantee the quality.
We also trading related tools for customers because we are in these
field over 10 years, we are very familiar Chinese market tools. we
usually help our customer choose the best suitable related tools
for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need
about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q: What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory
price and fast delivery.
