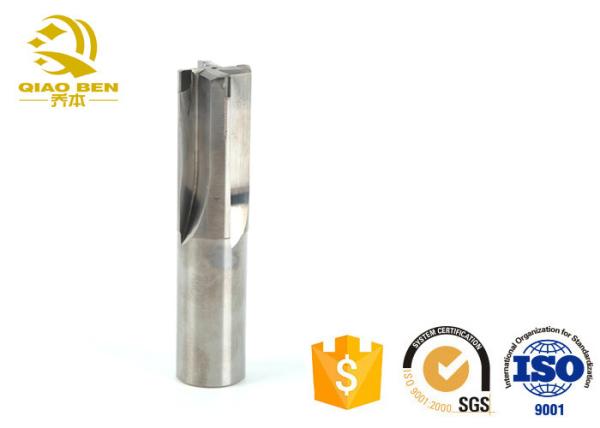

Special pcd diamond end mill cutter end milling tools for wood
working or metal cutting supply by manufacturer
overview
PCD (Polycrystalline Diamond) is a synthetic diamond product that
is produced by sintering together selected diamond particles with a
metal matrix, using sophisticated technology. The diamond and
matrix, when sintered together under high temperatures and
pressures, creates a PCD tool blank that is high in uniform
hardness and is abrasive resistant in all directions. PCD Inserts
is made of PCD tips( cutting from PCD blank) and a carbide
substrate.
① Natural diamond tool: Natural diamond as a cutting tool for
hundreds of years of history, natural single crystal diamond tool
after fine grinding, can grinding extremely sharp blade, blade
radius of 0.002 mu m, can realize the ultra-thin cutting, can work
out high precision and low surface roughness of workpiece, is
accepted, the ideal and does not take the place of ultra-precision
machining tools.
②PCD diamond tool: Natural diamond is expensive, and diamond is
widely used in cutting or polycrystalline diamond (PCD). Since the
early 1970s, Polycrystauine diamond (PCD) blade prepared by high
temperature and high pressure synthesis technology has been
developed successfully. In many cases, natural diamond tools have
been replaced by man-made polycrystalline diamond. PCD is rich in
raw materials and its price is only a tenth to a tenth of that of
natural diamond. PCD tool can not grind out extremely sharp edge,
processed workpiece surface quality is not natural can be used for
non-ferrous metal and non-metallic fine cutting, it is difficult to
achieve ultra-precision mirror cutting.
③ CVD diamond tool: since the late 1970s to the early 1980s, CVD
diamond technology appeared in Japan. CVD diamond refers to the
synthesis of diamond film by chemical vapor deposition (CVD) on
heterogeneous matrix (such as cemented carbide, ceramic, etc.). CVD
diamond has exactly the same structure and characteristics as
natural diamond. The performance of CVD diamond is very close to
that of natural diamond. It has the advantages of both natural
single crystal diamond and polycrystalline diamond (PCD), and
overcomes their disadvantages to some extent.
| Product Name | PCD/CBN/MCD/ND Inserts High Quality Diamond Inserts |
| Suitable Material | Gold/Silve/Aluminum/Brass/Acrylic/Plastic/PVC/MDF/Steel |
| Type | PCD/ MCD/ ND/ CVD/ CBN |
| Features | No burs, high precision, good surface effects and high cutting
efficiency and long work time |
| Advantages | Factory direct sales, short delivery time; non-standard
customization, quality assurance; attentive service, customer first |
| Brand | Joeben |
| Welcome and
congratulations!You found us a professional factory! |
| Size & Design | 1.We not only supply all kinds of high quality solid carbide
turning tool ,but also different types of Drill Bits,Reamers,Tool Holders,Cutter
Heads,Saw Blades and Milling cutter,There are diamond grinding wheel, diamond
dressing tools and hardness head. |
2. We have 0.02mm-25mm different diameter and 38mm-150mm length Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes
for you to choose. |
3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can produceaccording to your drawing,too.Or the hot deisgned recommend to you. |
| 4. HS Code reference for you to control everything:8207709000. |
| 5. Mixed size and types in one batch available. |
| 6. For distributor,we can label your brands on cutters and plastic
box. |
| Plating | 1. We accept Mix coated in the same model number, Also one batch
with different coating and types. |
| 2. AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your
competitors! |
| MOQ (Small Qty ) | 5-10-500-1000-5000-10000 pcs all are welcome. 5 pieces per order is
MOQ. |
OEM One-Step Packing | We package all our goods carefully.We also accept your packing
design OEM packing it for your control. |
| Samples Service | 1. Some items free samples for you. |
| 2. Free samples but pay shipping cost. |
| 3. Lowest shiping fee for you to choose. |
| 4. Order to us,sample fee will be refund to you. |
| 5. Become our VIP clients,free samples for you! |
| 6.OEM samples are hot welcome. |
- Suitable for workpiece : Carbon Steel, Aluminium alloy, Cuprum, Acrylic
- HRC: 45/55/60/65 HRC ,After quench, for processing large hardness of 150°
- Other Service: OEM/ODM or custom-made
- Effect: cut aluminum parts in large area, saving time and labor
- Machining parts:Outer circle and inner circle of turning parts
Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these
field over 10 years, we are very familiar Chinese market tools. we
usually help our customer choose the best suitable related tools
for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need
about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory
price and fast delivery.
Our advantage:
- 1. 10 years experience in carbide roll and cutting tool
manufacturing
- 2. From row material to tool produdtion.
- 3. World top level prodution equipment and rich experience team
ATTACTION:
- 1.Make sure work piece and machine are stable and use a precision
holder.
- 2.Please adjust the speed,feed and cutting depth according to
actual cutting conditions.
- 3.The milling conditions are for an end mill where the tool
overhang length is less than 4*D(mill diameter). When the tool
overhang length is longer, please adjust the speed,feed and cutting
depth.
