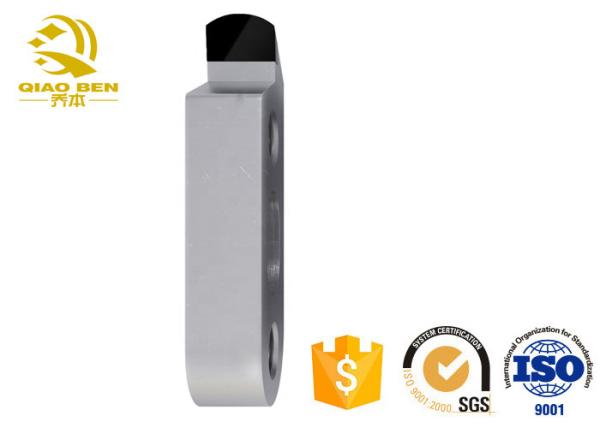

Diamond polishing knife for Acrylic Diamond cutter OEM Customized
Steel Stainless Single crystal cutter
overview
It is suitable for engraving and milling of non-metallic materials
such as gold, silver, copper, aluminum, acrylic, PC, PET, etc.
Hardware car parts; auto parts; surface treatment; handicraft
products; fine carving; copper material batches; mobile phone metal
buttons; mobile phone casings; digital casings; non-metal
high-gloss batches; clock surfaces, word nails; mirrored knives in
the case; nameplates , Sign high-gloss approval; car CD pattern;
car colorful pattern; car sun pattern; aluminum product high-gloss;
electrical shell approval; electrical panel; vehicle panel;
computer peripheral equipment; computer transparent case; acrylic
polishing; acrylic (plexiglass) high-gloss (Polishing) chamfering;
lenses; windows; motor commutator fine turning, etc.
Mainly used for high-gloss chamfering and straight-edge high-gloss
cutting of various ferrous metals, gold, silver, copper, aluminum
alloy, zinc alloy and non-metallic materials, acrylic, PVC, PC,
plastic and other materials, cutting surface light mirror
high-gloss effect, ue lonsg life. The tool parameters can be
customized freely, and the tool can be customized according to the
needs. The diamond width, angle, material and shank size of the
tool tip. The common specifications of the chamfering knife are 45
degrees, 75 degrees, 90 degrees, and the diamond width is 3.0mm.
Machining characteristics, strong stability, high mirror surface,
smooth chips, reduce cutting resistance, improve processing
efficiency and tool life. The tool can be re-ground several times,
and the raw materials of the tool are screened according to
industry standards to ensure that the tool does not need to be
replaced when the quality of the tool is worn. save processing
costs. Applicable equipment: CNC numerical control equipment
processing center in various fields.
| Welcome and
congratulations!You found us a professional factory! |
| Size & Design | 1.We not only supply all kinds of high quality solid carbide
turning tool ,but also different types of Drill Bits,Reamers,Tool Holders,Cutter
Heads,Saw Blades and Milling cutter,There are diamond grinding wheel, diamond
dressing tools and hardness head. |
2. We have 0.02mm-25mm different diameter and 38mm-150mm length Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes
for you to choose. |
3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can produceaccording to your drawing,too.Or the hot deisgned recommend to you. |
| 4. HS Code reference for you to control everything:8207709000. |
| 5. Mixed size and types in one batch available. |
| 6. For distributor,we can label your brands on cutters and plastic
box. |
| Plating | 1. We accept Mix coated in the same model number, Also one batch
with different coating and types. |
| 2. AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your
competitors! |
| MOQ (Small Qty ) | 5-10-500-1000-5000-10000 pcs all are welcome. 5 pieces per order is
MOQ. |
OEM One-Step Packing | We package all our goods carefully.We also accept your packing
design OEM packing it for your control. |
| Samples Service | 1. Some items free samples for you. |
| 2. Free samples but pay shipping cost. |
| 3. Lowest shiping fee for you to choose. |
| 4. Order to us,sample fee will be refund to you. |
| 5. Become our VIP clients,free samples for you! |
| 6.OEM samples are hot welcome. |
| PCD Cutting Condition |
| Work piece | Cutting Speed | Depth of Cut | Feed Rate |
| (m/min) | (mm) | (mm/rev) |
| Aluminum(5~8% SI ) | 350~1600 | 0.05~2.50 | 0.10~0.40 |
| Aluminum(8~12% SI ) | 350~1300 | 0.05~2.50 | 0.10~0.40 |
| Aluminum(14~18% SI ) | 160~800 | 0.05~2.50 | 0.05~0.25 |
| Copper | 350~1000 | 0.15~2.50 | 0.05~0.20 |
| Sintered Carbid | 15~25 | 0.05~0.60 | 0.10~0.20 |
| Glass Fiber | 100~800 | 0.15~0.50 | 0.03~0.25 |
| Carbon | 160~700 | 0.15~2.50 | 0.15~0.40 |
| High Aluminum | 70~250 | 0.05~1.50 | 0.03~0.15 |
| Ceramics |
| Wood | 1000-2500 | 0.2~5.0 | 010~0.50 |
- Suitable for workpiece : Carbon Steel, Aluminium alloy, Cuprum, Acrylic
- HRC: 45/55/60/65 HRC ,After quench, for processing large hardness of 150°
- Other Service: OEM/ODM or custom-made
- Effect: cut aluminum parts in large area, saving time and labor
- Machining parts:Outer circle and inner circle of turning parts
Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these
field over 10 years, we are very familiar Chinese market tools. we
usually help our customer choose the best suitable related tools
for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need
about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory
price and fast delivery.
Our advantage:
- 1. 10 years experience in carbide roll and cutting tool
manufacturing
- 2. From row material to tool produdtion.
- 3. World top level prodution equipment and rich experience team
ATTACTION:
- 1.Make sure work piece and machine are stable and use a precision
holder.
- 2.Please adjust the speed,feed and cutting depth according to
actual cutting conditions.
- 3.The milling conditions are for an end mill where the tool
overhang length is less than 4*D(mill diameter). When the tool
overhang length is longer, please adjust the speed,feed and cutting
depth.
