Single Crystal Chamfer End Mill Cutter Diamond Knife High Gloss Mcd Polishing

ShenZhen Joeben Diamond Cutting Tools Co,.Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Single Crystal Chamfer End Mill Cutter Diamond Knife High Gloss Mcd Polishing from wholesalers

    Buy cheap Single Crystal Chamfer End Mill Cutter Diamond Knife High Gloss Mcd Polishing from wholesalers
    • Buy cheap Single Crystal Chamfer End Mill Cutter Diamond Knife High Gloss Mcd Polishing from wholesalers
    • Buy cheap Single Crystal Chamfer End Mill Cutter Diamond Knife High Gloss Mcd Polishing from wholesalers
    • Buy cheap Single Crystal Chamfer End Mill Cutter Diamond Knife High Gloss Mcd Polishing from wholesalers

    Single Crystal Chamfer End Mill Cutter Diamond Knife High Gloss Mcd Polishing

    Ask Lasest Price
    Brand Name : Joeben
    Model Number : MCDMC204
    Certification : ISO9001:2015 , GR201744202646
    Price : negotiable
    Payment Terms : L/C, T/T, , D/A
    Supply Ability : 100000 Piece/Pieces per Month
    Delivery Time : 3-8work days
    • Product Details
    • Company Profile

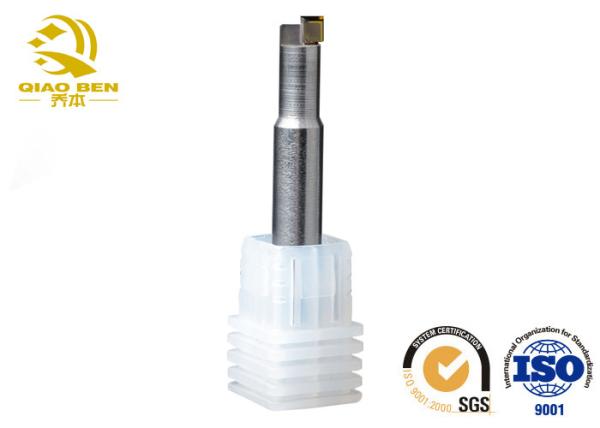

    Single Crystal Chamfer End Mill Cutter Diamond Knife High Gloss Mcd Polishing

    Single crystal diamond knife diamond high gloss chamfering aluminum alloy high gloss chamfering milling cutter

    MCD and diamond is of high hardness, high wear resistance and high heat transfer coefficient, and with natural diamond belongs to a single crystals, its not the nature of the grain boundary can create a very sharp blade quality, is out of reach for other materials, has long been used in the production of ultra precision machining of diamond cutters, polishing tools and abrasion resistant components.
    The higher cutting speed can reduce the cutting force, while the lower cutting speed will increase the cutting force, thus accelerating the cutting edge failure. Therefore, the cutting speed should not be too low when using single crystal diamond tools.
    It should be avoided to contact the single crystal diamond tool with the workpiece or other hard objects in the static state, so as to prevent the cutting edge from being damaged, and avoid stopping when the tool does not leave the workpiece during cutting
    Diamond knife blade is easy to damage, when the blade is not working, use rubber or plastic cap to protect the blade and place it in a separate knife case for safekeeping, before each use with alcohol to wipe the blade clean before working
    Maintain the environment and machine performance stability, personnel operation proficiency and so on have an impact on the life of the tool.

    MCD Recommended Cutting Condition
    Work pieceCutting SpeedDepth of CutFeed Rate
    (m/min)(mm)(mm/rev)
    Aluminum(5~8% SI )350~16000.05~2.500.10~0.40
    Aluminum(8~12% SI )350~13000.05~2.500.10~0.40
    Aluminum(14~18% SI )160~8000.05~2.500.05~0.25
    Copper350~10000.15~2.500.05~0.20
    Sintered Carbid15~250.05~0.600.10~0.20
    Glass Fiber100~8000.15~0.500.03~0.25
    Carbon160~7000.15~2.500.15~0.40
    High Aluminum70~2500.05~1.500.03~0.15
    Ceramics
    Wood1000-25000.2~5.0010~0.50

    Welcome and congratulations!You found us a professional factory!
    Size & Design

    1.We not only supply all kinds of high quality solid carbide turning tool ,but

    also different types of Drill Bits,Reamers,Tool Holders,Cutter Heads,Saw

    Blades and Milling cutter,There are diamond grinding wheel, diamond dressing tools and hardness head.

    2. We have 0.02mm-25mm different diameter and 38mm-150mm length

    Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes for you

    to choose.

    3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can

    produceaccording to your drawing,too.Or the hot deisgned recommend

    to you.

    4. HS Code reference for you to control everything:8207709000.
    5. Mixed size and types in one batch available.
    6. For distributor,we can label your brands on cutters and plastic box.
    Plating

    1. We accept Mix coated in the same model number, Also one batch with

    different coating and types.

    2. AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your competitors!
    MOQ (Small Qty )5-10-500-1000-5000-10000 pcs all are welcome. 5 pieces per order is MOQ.

    OEM

    One-Step Packing

    We package all our goods carefully.We also accept your packing design OEM

    packing it for your control.

    Samples Service1. Some items free samples for you.
    2. Free samples but pay shipping cost.
    3. Lowest shiping fee for you to choose.
    4. Order to us,sample fee will be refund to you.
    5. Become our VIP clients,free samples for you!
    6.OEM samples are hot welcome.

    1. Customers send detailed inquiry to us by email;

    2. We reply with price, specifications, packing, photos, and other details;

    3. Both of us agree the price and confirm the details;

    4. We write the proforma invoice and send to customers;

    5. Customers make deposit;

    6. We make mass production samples;

    7. We send mass product samples or send photos to customers for approval;

    8. Customers confirm the mass production samples;

    9. We start mass production.(we have huge stock for most standard end mills);


    Business Terms

    Accepted Delivery Terms: FOB,CNF,CIF

    Accepted Payment Currency: USD, CNY

    Accepted Payment Type: T/T, Western Union

    Nearest Port: Guangzhou port, Shenzhen port, Shanghai port

    Response Rate (last 30 days)


    98.6% of buyers who contacted this supplier received a response within 24 hours.

    Average Response Time (7 days)

    The supplier's average response time of received inquiries is within 12 hours.


    Quotation Performance (last 30 days)

    The supplier have sent 33 quotes to buyers in last 30 days.


    Q: Are you Manufacture?

    A: Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.

    We also trading related tools for customers because we are in these field over 10 years, we are very familiar Chinese market tools. we usually help our customer choose the best suitable related tools for them.

    Q: What is your delivery time?

    A: Most of models are ex-stock, if out of stock,there usually need about 3-5 days or 7-10 days.

    Q: Can you produce non-standard tools?

    A: Yes, we can produce non-standard tools as per your drawing.

    We also can design tools for you as per your usage requirement

    Q: What is your advantages?

    A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory price and fast delivery.


    Our advantage:

    • 1. 10 years experience in carbide roll and cutting tool manufacturing
    • 2. From row material to tool produdtion.
    • 3. World top level prodution equipment and rich experience team

    ATTACTION:

    • 1. Make sure work piece and machine are stable and use a precision holder.
    • 2. Please adjust the speed,feed and cutting depth according to actual cutting conditions.
    • 3. The milling conditions are for an end mill where the tool overhang length is less than 4*D(mill diameter). When the tool overhang length is longer, please adjust the speed,feed and cutting depth.
