Brand Name : | Joeben |
Model Number : | PCDNFCT105 |
Certification : | ISO9001:2015 , GR201744202646 |
Price : | negotiable |
Payment Terms : | L/C, T/T, , D/A |
Supply Ability : | 100000 Piece/Pieces per Month |
Delivery Time : | 3-8work days |

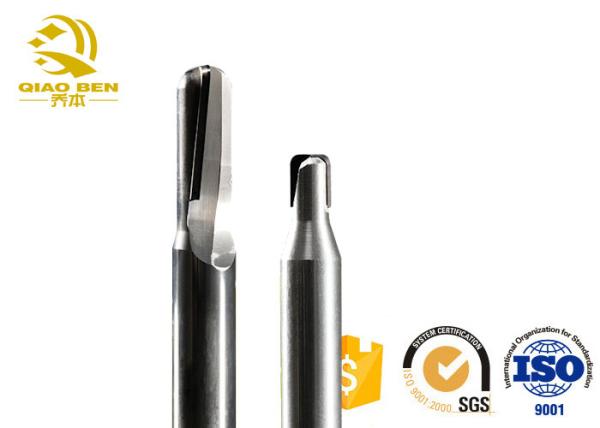

Precision Two flutes PCD end milling tools mill cutter manufacturer jewellery cutting diamond tools end mill tool
Diamond "PCD" is specialized in the finishing of copper, aluminum
alloy, hard alloy, graphite, ceramics and high hard wear-resisting
materials.
It has the characteristics of long service life, high production
efficiency, high surface finish and high machining precision.
Compared with cemented carbide and natural diamond tool processing
efficiency and low cost, widely used in automobiles, diesel
engines, motorcycles, aerospace, home appliances, instruments,
precision machinery and other industries.
The high hardness of PCD makes its material removal rate very low
(even only 1/10000 of the removal rate of cemented carbide).
At present, the grinding technology of PCD tool is mainly used for
grinding with ceramic bonded diamond wheel.
Because grinding between grinding wheel abrasive and PCD is the
interaction between two kinds of materials with similar hardness,
the grinding law is more complex.
For high grain size and low speed grinding wheels, the use of
water-soluble coolant can improve the grinding efficiency and
grinding accuracy of PCD.
The choice of binding agent for grinding wheel depends on the type
of grinding machine and processing conditions.
Because EDG technology is almost not affected by the hardness of
the workpiece, it has great advantages to use EDG technology to
grind PCD.
There is also a great demand for this flexible grinding process for
some PCD tools with complex shapes, such as woodworking tools.
With the continuous development of EDG technology, EDG technology
will become a main development direction of PCD grinding.
The choice of PCD particle size is related to the tool processing
conditions, such as the design for finishing or ultra-finishing
machining tools, should choose high strength, good toughness, good
impact resistance, fine grain PCD.
Coarse-grain PCD tools can be used for general rough machining.
The particle size of PCD material has a significant effect on tool
wear and damage properties.
The results show that the larger the PCD size is, the stronger the
tool wear resistance is.
PCD particle size is submicron, 2μm, 5μm, 10μm, 25μm and 2~30μm.
CDW010 material with 10μm particle size is universal and has good
edge resistance and wear resistance. In general, the larger the
particle size is, the blade material has better wear resistance,
while CDW302 material with mixed particle size of 2~30μm has better
wear resistance.
As shown in the figure, the comparison of the chip resistance and
wear resistance of different PCD granularity, as well as the
comparison of the discharge characteristics and grindability.
PCD engraving tool's specialty:
To mobile phone shell, panel, mobile phone lens, digital lenses,
camera lenses, MP3 / MP4 lens, VCD, DCD, digital Windows,
electrical name plate and other CNC chamfering, milling processing,
high precision cutting tool size (+ / - 0.01 mm), processing
product is no burr and long tool life, high machining efficiency,
low cost and high surface finish, etc.
CNC precision processing is the best choice!
Diamond Jewellery Manufacturing Consultation
We also provide consultation service in setting up new production line for jewellery making. With about 30 years of experience in the jewellery manufacturing industry. We have rich experience for jewellery making. We have full range of diamond tools that used for jewellery cutting and texturing.
It's used to machine wide range materials such as nonferrous metal,likeAluminum,Aluminum Alloy,Copper,Copper Alloy,Tungsten Carbide,Wood,Reinforced Plastic,Rubber,Graphite,Composite Material,Carbon Fiber,Glass Fiber,Composite Ceramic ect....
Product name | CNC convex side milling Tool |
Application Apparatus | CNC equipment |
Optional Material | Natural diamond,MCD,CVD,PCD,etc. |
Diamond Size | 0.25mm to 8mm |
Shank Material | Carbide/stainless steel |
Shank Thickness | 6mm |
Rotate speed | 10000~30000r/min |
Feed velocity | 1500~5000mm/min |
Machinable materials | gold,silver,copper,aluminum,acrylic and other Non-ferrous metal material |
Welcome and congratulations!You found us a professional factory! | |
Size & Design | 1.We not only supply all kinds of high quality solid carbide turning tool ,but also different types of Drill Bits,Reamers,Tool Holders,Cutter Heads,Saw Blades and Milling cutter,There are diamond grinding wheel, diamond dressing tools and hardness head. |
2. We have 0.02mm-25mm different diameter and 38mm-150mm length Milling Cutters for your winner market.HRC45/55/60/65 ,1-6 flutes for you to choose. | |
3.OEM:Special Cutters Customized acceptable!Coated OEM also.We can produceaccording to your drawing,too.Or the hot deisgned recommend to you. | |
4. HS Code reference for you to control everything:8207709000. | |
5. Mixed size and types in one batch available. | |
6. For distributor,we can label your brands on cutters and plastic box. | |
Plating | 1. We accept Mix coated in the same model number, Also one batch with different coating and types. |
2. AlTiN,TiAlN,TiSiN,TiN,DLC,NANO for you to choose to win your competitors! | |
MOQ (Small Qty ) | 5-10-500-1000-5000-10000 pcs all are welcome. 5 pieces per order is MOQ. |
OEM One-Step Packing | We package all our goods carefully.We also accept your packing design OEM packing it for your control. |
Samples Service | 1. Some items free samples for you. |
2. Free samples but pay shipping cost. | |
3. Lowest shiping fee for you to choose. | |
4. Order to us,sample fee will be refund to you. | |
5. Become our VIP clients,free samples for you! | |
6.OEM samples are hot welcome. |
Grade | Work-piece material | Hardness | V(m/min) | F(mm/rev) | Ap(mm) |
CBN | Gray cast iron | HB170-300 | 500-1500 | 0.1-0.4 | 0.1-1.5 |
Nodular cast iron | HB240-300 | 200-400 | 0.1-0.4 | 0.1-0.5 | |
Alloyed cast iron | HB240-300 | 150-300 | 0.05-0.4 | 0.1-0.5 | |
Fe-based P/M | HRC45-50 | 50-150 | 0.05-0.4 | 0.05-0.5 | |
Hardened steels | HRC55-65 | 80-200 | 0.05-0.2 | 0.05-0.2 | |
Heat-resistant alloys | 50-200 | 0.05-0.2 | 0.05-0.2 | ||
PCD | AI and AI alloys | 200-3000 | 0.05-0.5 | 0.05-1.0 | |
Non-mentals Cemented | 100-500 | 0.05-0.5 | 0.05-1.0 | ||
Carbide | 20-30 | 0.05-0.2 | 0.05-0.2 |
1. Customers send detailed inquiry to us by email;
2.We reply with price, specifications, packing, photos, and other details;
3. Both of us agree the price and confirm the details;
4.We write the proforma invoice and send to customers;
5.Customers make deposit;
6.We make mass production samples;
7.We send mass product samples or send photos to customers for approval;
8.Customers confirm the mass production samples;
9.We start mass production.(we have huge stock for most standard end mills);
10. We show ready products' photos or customers inspect on site;
11.Customers make balance payment;
12.Delivery is arranged. Feedback from customers for better work in future.
13.We also make OEM and customized end mills.
We supply service for re-lapping and polishing the diamond tools to increase tool life and performance. The tools can be re-polished about 60-70 times.We have more than 150 trained technicians who can offer fast re-polishing service for diamonds tools.For more details,please contact our sales.
We also provide consultation service in setting up new production
line for jewellery making. With about 30 years of experience in the
jewellery manufacturing industry. We have rich experience for
jewellery making. We have full range of diamond tools that used for
jewellery cutting and texturing.
Our technicans will give you valuable suggestions on how to
selection the most suitable tool and machines for your company.
Q: Are you Manufacture?
A: Yes, we are manufacture. we produce our “JOEBEN“brand tools for gurantee the quality.
We also trading related tools for customers because we are in these
field over 10 years, we are very familiar Chinese market tools. we
usually help our customer choose the best suitable related tools
for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need
about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q: What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory
price and fast delivery.
