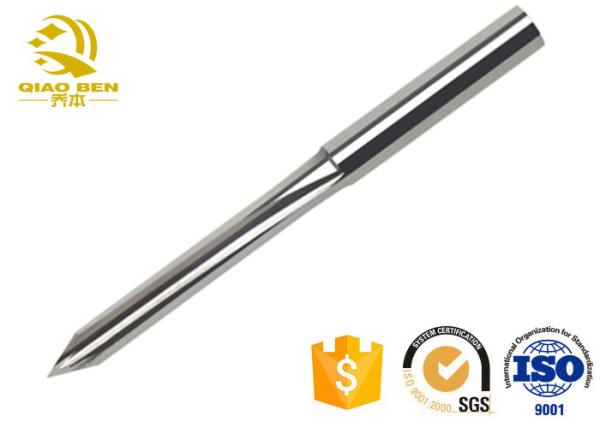

Solid Carbide Reamers CNC Quality Straight Shank Adjustable Hand
Reamer
Reasonable selection and maintenance of tools, to give play to the
use efficiency of tools, to help the number and length of tool use,
control costs, JOEBEN tools have the following Suggestions:
1, according to the structure of the processing products, materials
and machining hardness choose the appropriate tool type.
2, check the power and stiffness of the machine tool, so that the
required tool diameter can be used on the machine tool.
3. The tool overhang on the spindle should be as short as possible
to reduce the impact load caused by the tool axis and the workpiece
position.
4, the use of suitable for the process of the tool pitch, so that
when cutting not too many blades and the workpiece at the same time
and cause vibration, on the other hand, in the milling narrow
workpiece or milling cavity to keep the blade and the workpiece
mesh.
5, try to use the feed per blade, so as to get the cutting position
when the chip thickness, so as to reduce tool wear.The front Angle
groove - shaped indexable blade is adopted to obtain smooth cutting
power.
6, choose suitable for the width of the workpiece tool diameter.
7, choose the appropriate main Angle.
8. Place each cutter in an orderly manner.
9. Follow the rules of tool maintenance and repair, and monitor
tool wear.
| Item | AlTiN | TiAIN | TiSiN | nACo |
| Hardness(HV) | 3200 | 2800 | 3600 | 42(GPA) |
| Thickness(UM) | 2.5-3 | 2.5-3 | 3 | 3 |
| Oxidation Temp(°) | 900 | 800 | 1000 | 1200 |
| Friction Coeffient | 0.3 | 0.3 | 0.45 | 0.4 |
| Color | Black | Violet | Copper | Blue |
End Mill Tool material composition:
1. Physical Properties:
a. Hardness greater than or equal to 92.6 HRA;
b. Density greater than or equal to 14.4g/cm³;
c. TRS greater than or equal to 3800 N/mm²;
d. Free of ETA phase condition;
e. No contamination by other materials;
f. Porosity = A02/ B00 / C00 ;
g. Uniform and consistent grain size. No grain size can be larger
than specified.
h. Chromium carbide grain growth inhibitor only.
2. All the tools of production, coatings are used in Germany,
Switzerland, processing equipment;
3. It's proposed cutting less than 65HRC;
| EDP No. | Dia(mm) | Angle | Flute Length(mm) | Flutes | Shank Dia(mm) | OverLength(mm) |
| 2207010605 | 0.4 | 90 | 8 | 2 | 4 | 45 |
| 2207010229 | 0.5 | 127 | 0.87 | 2 | 4 | 50 |
| 2207010160 | 0.5 | 90 | 5 | 2 | 4 | 50 |
| 2207010342 | 1 | 71 | 9.94 | 2 | 4 | 50 |
| 2207010089 | 1 | 90 | 5.00 | 2 | 4 | 50 |
| 2207010085 | 1.2 | 120 | 5 | 2 | 4 | 50 |
| 2207010606 | 1.2 | 90 | 5.0 | 2 | 4 | 50 |
1. Physical Properties:overview
a. Hardness greater than or equal to 92.6 HRA;
b. Density greater than or equal to 14.4g/cm³;
c. TRS greater than or equal to 3800 N/mm²;
d. Free of ETA phase condition;
e. No contamination by other materials;
f. Porosity = A02/ B00 / C00 ;
g. Uniform and consistent grain size. No grain size can be larger
than specified.
h. Chromium carbide grain growth inhibitor only.
2. All the tools of production, coatings are used in Germany,
Switzerland, processing equipment;
3. It's proposed cutting less than 65HRC;
Q:Are you Manufacture?
A:Yes, we are manufacture. we produce our “JOEBEN “brand tools for gurantee the quality.
We also trading related tools for customers because we are in these
field over 10 years, we are very familiar Chinese market tools. we
usually help our customer choose the best suitable related tools
for them.
Q: What is your delivery time?
A: Most of models are ex-stock, if out of stock,there usually need
about 3-5 days or 7-10 days.
Q: Can you produce non-standard tools?
A: Yes, we can produce non-standard tools as per your drawing.
We also can design tools for you as per your usage requirement
Q:What is your advantages?
A: We are factory who produce our own brand “JOEBEN” tools, we must gurantee our brand quality. Also, we have factory
price and fast delivery.
Our advantage:
- 1. 10 years experience in carbide roll and cutting tool
manufacturing
- 2. From row material to tool produdtion.
- 3. World top level prodution equipment and rich experience team
ATTACTION:
- 1.Make sure work piece and machine are stable and use a precision
holder.
- 2.Please adjust the speed,feed and cutting depth according to
actual cutting conditions.
- 3.The milling conditions are for an end mill where the tool
overhang length is less than 4*D(mill diameter). When the tool
overhang length is longer, please adjust the speed,feed and cutting
depth.
